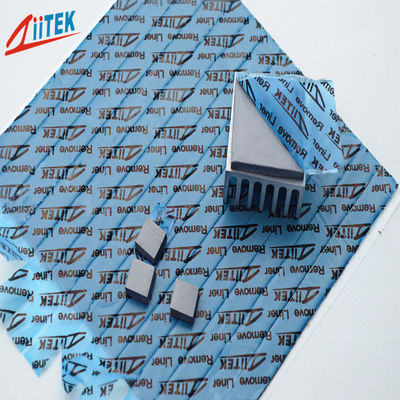

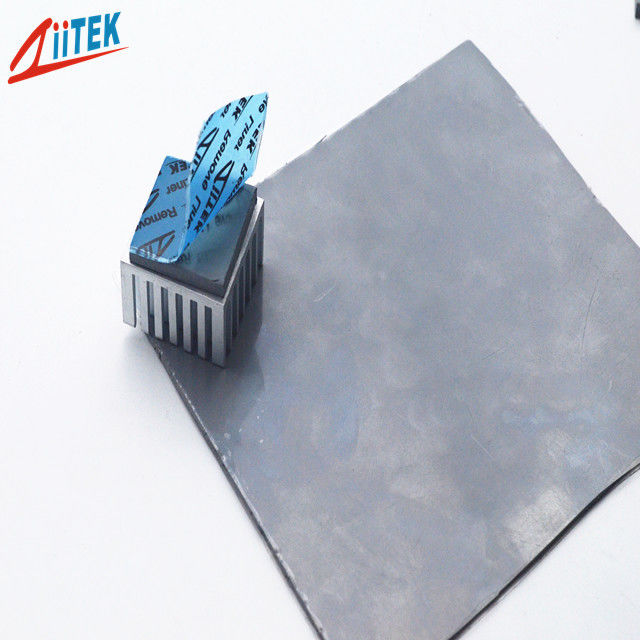

Name: 8.5W Silicone Thermal Conductive Pad Cooling LED CPU GPU Heat Conductivity Interface Materials
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF7180RUS Series
Price: 4.10 USD
Availability: InStock

Inicio Productos cojín termal del disipador de calor

8.5W Silicone Thermal Conductive Pad Cooling LED CPU GPU Heat Conductivity Interface Materials

Datos del producto:

Place of Origin:	China
Nombre de la marca:	Ziitek
Certificación:	UL & RoHS
Model Number:	TIF7180RUS Series

Pago y Envío Términos:

Minimum Order Quantity:	1000pcs
Precio:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contacto

Descripción detallada del producto

Features:	Available in different thinkness options	Products name:	8.5W Silicone Thermal Conductive Pad Cooling LED CPU GPU Heat Conductivity Interface Materials
Application:	LED CPU GPU EV Battery	Thinkness range:	4.5mmT
Thermal Conductivity:	8.5W/mK	Flam rating:	94 V-0
Hardness:	20 Shore 00	Color:	Gray
Keywords:	Silicone Thermal Conductive Pad

8.5W Silicone Thermal Conductive Pad Cooling LED CPU GPU Heat Conductivity Interface Materials

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

TIF^®7180RUS Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features:
> Excellent thermal conductivity 8.5W/mK

> Moldability for complex parts
> Soft and compressible for low stress applications
> RoHS compliant
> UL recognized
> Easy release construction

Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Notebook
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components

Typical Properties of TIF^®7180RUS Series
Color	Gray	Visual
Construction & Compostion	Ceramic filled silicone	*****
Specific Gravity	3.2 g/cc	ASTM D792
Thickness	4.5mm	ASTM D374
Hardness	20 (Shore 00)	ASTM 2240
Continuos Use Temp	-40 to 200℃	******
Dielectric Breakdown Voltage	≥3500 VAC	ASTM D149
Dielectric Constant	5.1~6.1 MHz	ASTM D150
Volume Resistivity(Ohm-cm)	＞1.0*1.0¹²	ASTM D257
Fire rating	94 V0	UL (E331100)
Thermal conductivity	8.5W/m-K	ASTM D5470

Product Specification
Product Thicknesses: 0.040inch (1.0mm)~0.200inch (5.00mm)

Product Sizes:8" x 16"(200mm x400mm)

Individual die cut shapesand and custom thickness can be supplied. Please contact us for different thickness.For more information about thermalconductivity materials, please contact us.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
