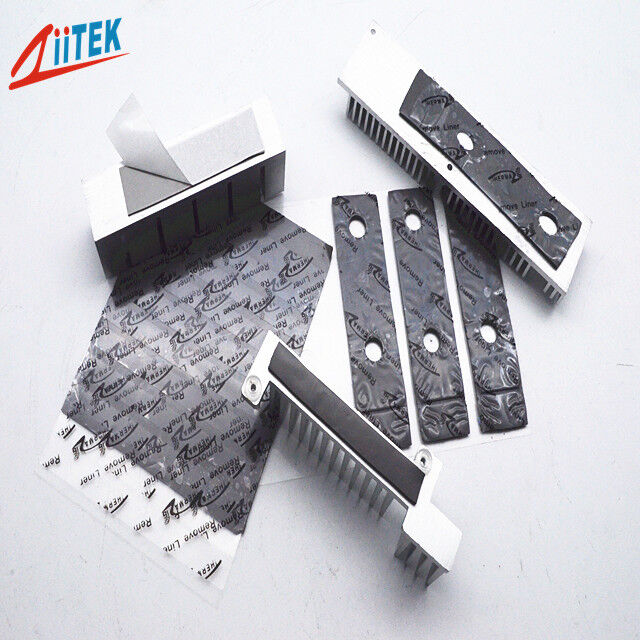

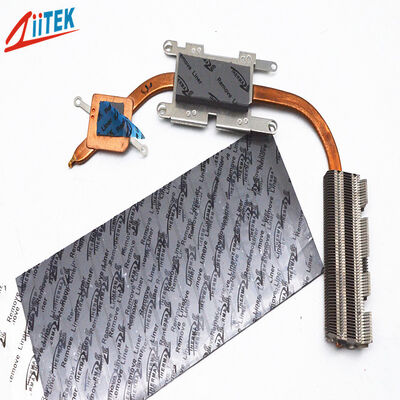

Name: High Thermal Conductive 8.5W/MK Thermal Management Materais Thermal Pad For Computer CPU/GPU Cooling
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-85-11US
Price: 4.10 USD
Availability: InStock

Inicio Productos Cojín termal de la CPU

High Thermal Conductive 8.5W/MK Thermal Management Materais Thermal Pad For Computer CPU/GPU Cooling

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Ziitek
Certificación:	UL
Número de modelo:	TIF100-85-11US

Pago y Envío Términos:

Cantidad de orden mínima:	1000 piezas
Precio:	0.1-10 USD/PCS
Detalles de empaquetado:	cajas de 241312 cm
Tiempo de entrega:	3-8 días laborables
Condiciones de pago:	T/T
Capacidad de la fuente:	100000 unidades/mes

Contacto

Descripción detallada del producto

Nombre de los productos:	Alto cojín termal conductor termal de Materais de la gestión termal 8.5W/MK para el enfriamiento de	Rango de espesor:	0,012"(0,30 mm)~0,200"(5,0 mm)
Dureza:	35/20 costa00	Palabras clave:	Materiales de gestión térmica
Color:	Gris oscuro	Construcción:	Elastómero de silicona relleno de cerámica
conductor termal:	8.5 W/mK	Solicitud:	Enfriamiento de CPU/GPU de computadora

High Thermal Conductive 8.5W/MK Thermal Management Materais Thermal Pad For Computer CPU/GPU Cooling

Company Profile

A silicone thermal pad is a type of thermal interface material (TIM) which is highly conductive and comprises of conformable materials which are used to provide a heat path between heat sinks and electronic devices where uneven surface topography, air gaps and texture preclude good thermal transfer. Ziitek supply a wide range of silicone thermal pads with varying properties to suit every application.

The TIF^®100-85-11US Series is a thermal pad designed specifically for environments sensitive to extreme mechanical stress. It combines excellent thermal conductivity with an almost fluid-like extreme softness, ensuring perfect contact interface fillng even under ultra-low mounting pressure,completely eliminating air thermal resistance,and providing superior heat dissipation solutions and physical protection for the most delicate electronic components.

Features:

> Good thermal conductive: 8.5 W/mK
> Broad range of hardnesses available
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications:

> Computer / communication equipment.
> Laptop / tablet / PC server.
> New energy power battery / vehicle equipment.
> Switching power supply / UPS.
> Video / security equipment.
> Any heating element and radiator.

Typical Properties of TIF^®100-85-11US Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.5		ASTM D792
Thickness Range(inch/mm)	0.012~0.020	0.030~0.200	ASTM D374
	(0.30~0.50)	(0.75~5.00)
Hardness	35 Shore 00	20 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥ 5500		ASTM D149
Dielectric Constant	6.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal Conductivity (W/m-K)	8.5		ASTM D5470
	8.5		ISO22007
Fire rating	V-0		UL 94 (E331100)

Product Specifications
Standard Thickness: 0.012" (0.30 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
