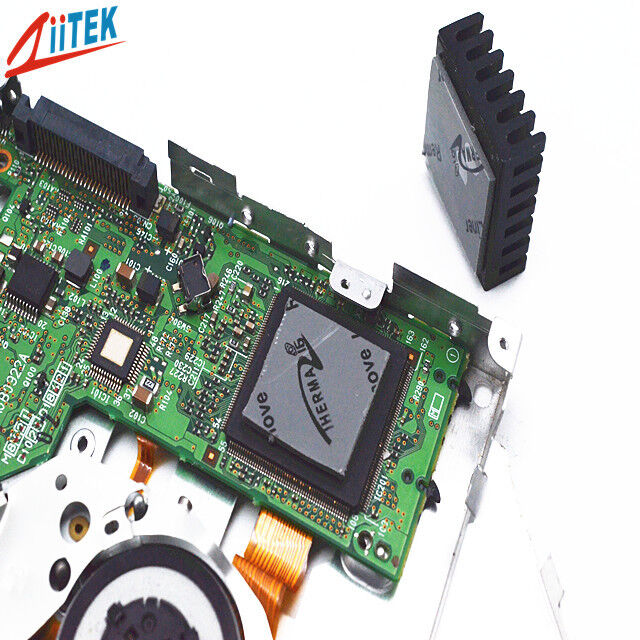

Name: Particularly Soft 1.5W/MK Thermal Gap Filler Pad For AI Processors AI Servers
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-11US
Price: 4.10 USD
Availability: InStock

Inicio Productos Cojín termal de la CPU

Particularly Soft 1.5W/MK Thermal Gap Filler Pad For AI Processors AI Servers

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Ziitek
Certificación:	UL
Número de modelo:	TIF100-11US

Pago y Envío Términos:

Cantidad de orden mínima:	1000 piezas
Precio:	0.1-10 USD/PCS
Detalles de empaquetado:	cartón de 241312cm
Tiempo de entrega:	3-8 días laborables
Condiciones de pago:	T/T
Capacidad de la fuente:	100000 unidades/mes

Contacto

Descripción detallada del producto

Nombre de los productos:	Cojín de relleno termal particularmente suave 1.5W/MK para los servidores de AI de los procesadores	Construcción:	Elastómero de silicona relleno de cerámica
Dureza:	65/20 Orilla 00	Color:	Gris oscuro
Solicitud:	Procesadores de IA Servidores de IA	conductor termal:	1.5 w/mk
Espesor:	0.010 "(0.25 mm) ~ 0.200" (5.0 mm)	Densidad:	2,3 g/cm³
Palabras clave:	cojín termal del reemisor de isofrecuencia

Particularly Soft 1.5W/MK Thermal Gap Filler Pad For AI Processors AI Servers

Company Profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

Products description

Ziitek TIF^®100-11US is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF^®100-11US is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Features

> Good thermal conductive 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses

Applications

> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers

Typical Properties of TIF^®100-11US Series
Property	Value		Test method
Color	Dark gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.3		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	20 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant @1MHz	4.5		ASTM D150
Volume Resistivity(Ohm-meter)	＞1.0X10¹²		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity(W/m-K)	1.5		ASTM D5470
	1.5		ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.

FAQ

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.

Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
