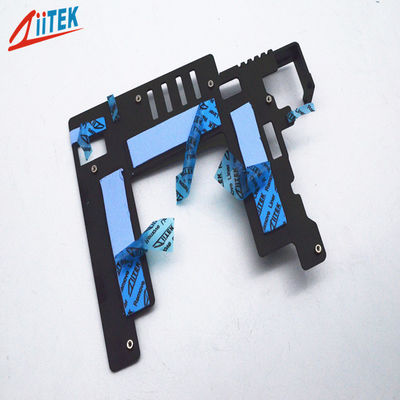

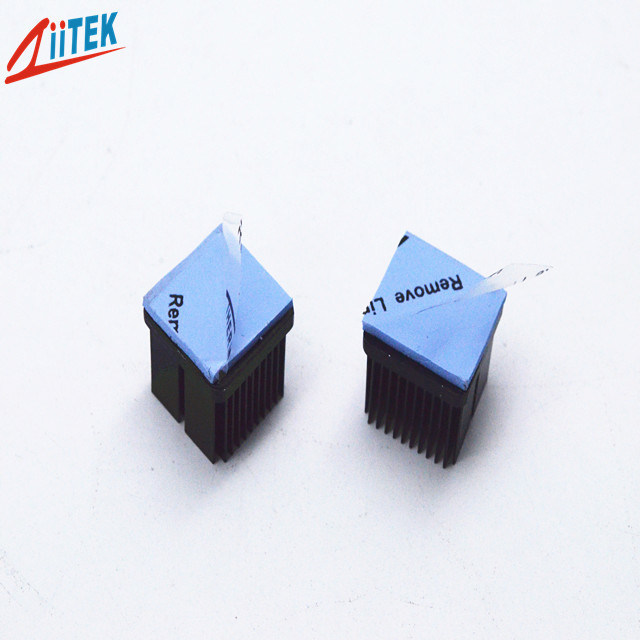

Thermal Pad 0.5mm To 5.0mm Thick Silicone Material Thermal Pads For Laptop CPU

Thermal Pad 0.5mm To 5.0mm Thick Silicone Material Thermal Pads For Laptop CPU

Datos del producto:
Lugar de origen: PORCELANA
Nombre de la marca: Ziitek
Certificación: UL & RoHS
Número de modelo: TIF100-05E
Pago y Envío Términos:
Cantidad de orden mínima: 1000pcs
Precio: 0.1-10 USD/PCS
Detalles de empaquetado: 24*13*12 cm de cartones
Tiempo de entrega: 3-5 días de trabajo
Condiciones de pago: T/T
Capacidad de la fuente: 1000000 PC/mes
Contacto
Descripción detallada del producto
Nombre de los productos: Cojín térmico cojines térmicos materiales de silicona gruesa de 0,5 mm a 5,0 mm para CPU de computad Color: Azul
Voltaje de descomposición dieléctrica: > 5500 VAC Muestra: Muestra libre
Constante dieléctrica: 4,7 megaciclos Rango de grosor: 0.020 "~ 0.200" (0.5 mm ~ 5.0 mm)
Palabras clave: Almohadilla térmica Calificación de fuego: 94 V0
Conductividad térmica: 1,5 W/m-K Solicitud: CPU de computadora portátil, batería de automóvil, fuente de alimentación, etc.
Resaltar:

0.5mm silicone thermal pad

,

laptop CPU thermal pad

,

5.0mm thick thermal pad

Thermal Pad 0.5mm To 5.0mm Thick Silicone Material Thermal Pads For Laptop CPU



Company Profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect.



Ziitek TIF®100-05E Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.



Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp



Typical Properties of TIF®100-05E Series
Property Value Test method
Color Blue ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ASTM D374
Specific Gravity 2.0g/cc ASTM D297
Hardness 35 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.7 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470


Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

Thermal Pad 0.5mm To 5.0mm Thick Silicone Material Thermal Pads For Laptop CPU 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.



Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
