Name: Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Medical Devices
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF112-12-10S-K1
Price: 4.10 USD
Availability: InStock

Inicio Productos cojín la termal del silicón

Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Medical Devices

Datos del producto:

Place of Origin:	China
Nombre de la marca:	Ziitek
Certificación:	UL & RoHS
Model Number:	TIF112-12-10S-K1

Pago y Envío Términos:

Minimum Order Quantity:	1000pcs
Precio:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contacto

Descripción detallada del producto

Products name:	Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Medical Devices	Certificación:	RoHS and UL recognized
Color:	Gray / Light amber	Keywords:	Thermal Pads
Thinkness range:	0.012"(0.30mm)	Sample:	Sample Avaliable
Flam rating:	94 V0	Hardness:	65±5 Shore 00
Thermal Conductivity:	1.2W/mK	Application:	Medical Devices Cooling

Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Medical Devices

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

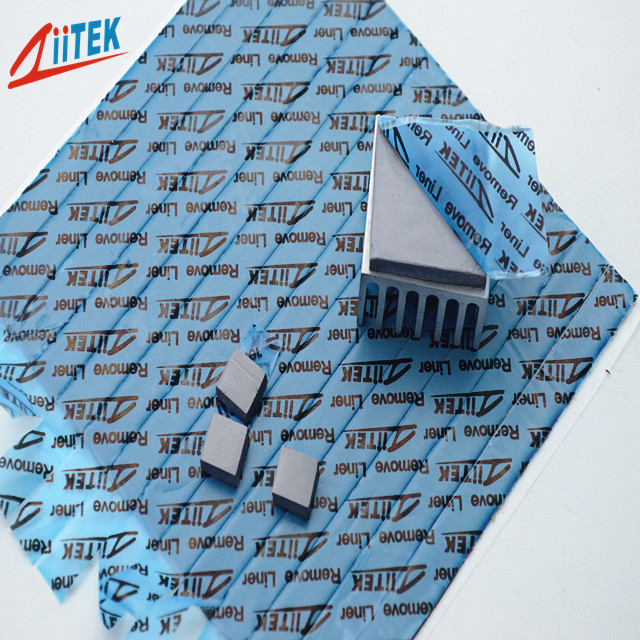

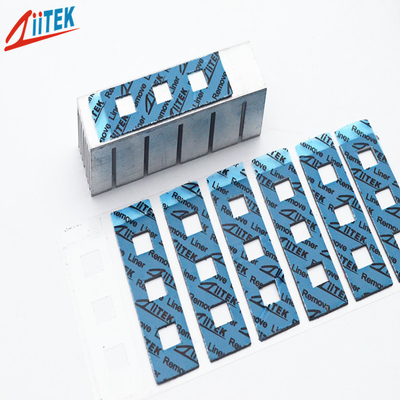

Product description

TIF112-12-10S-K1 is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features

> Good thermal conductive : 1.2W/mK
> Soft and Compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thickness

> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance

Applications

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Display card
> Telecommunication hardware
> Audio and video components
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)

Typical Properties of TIF112-12-10S-K1 Series
Color	Gray / Light amber	Visual
Construction & Compostion	Ceramic filled silicone elastomer	*******
Renforcement Carrier	Polyimide film	*******
Specific Gravity	2.2g/cc	ASTM D792
Thickness range	0.012"(0.30mm)	ASTM D374
Hardness (thickness ≥1.0mm)	60 ±5 Shore 00	ASTM 2240
Dielectric Breakdown Voltage	>5500 VAC	ASTM D412
Operating Temp	-40 ~120℃	*******
Dielectric Constant	4.5MHz	ASTM D150
Volume Resistivity	1.0X10¹²Ohm-meter	ASTM D257
Fire rating	94-V0	equivalent UL
Thermal conductivity	1.2W/mK	ASTM D5470

Product Specification

Product Thicknesses: 0.012"(0.30mm)

Product Sizes: 8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming.

Safe disposal method does not require special protection.The storage condition is low temperature and dry,

away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.

Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Medical Devices 0

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.
