Name: Electrically Isolating Premium Soft Thermal Conductivity 1.5W/MK Silicone Thermal Pad For Medical Devices
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: Serie TIF100-01U
Price: 4.10 USD
Availability: InStock

Inicio Productos cojín la termal del silicón

Electrically Isolating Premium Soft Thermal Conductivity 1.5W/MK Silicone Thermal Pad For Medical Devices

Datos del producto:

Lugar de origen:	China.
Nombre de la marca:	Ziitek
Certificación:	UL & RoHS
Número de modelo:	Serie TIF100-01U

Pago y Envío Términos:

Cantidad de orden mínima:	1000pcs
Precio:	0.1-10 USD/PCS
Detalles de empaquetado:	241312 cm de cartones
Tiempo de entrega:	3-5 días de trabajo
Condiciones de pago:	T/T
Capacidad de la fuente:	1000000 PC/mes

Contacto

Descripción detallada del producto

Nombre de los productos:	Aislamiento eléctrico Conductividad térmica blanda premium 1.5W/MK Padera térmica de silicona para d	Conductividad térmica:	1,5 W/m-K
Color:	Negro	Rango de grosor:	0.020" ((0.5mm) ~ 0.200" ((5.0mm)
Voltaje de descomposición dieléctrica:	> 5500 VAC	Palabras clave:	cojín termal del silicón
Constante dieléctrica:	3.5 MHz	Calificación de fuego:	94 V0
Solicitud:	dispositivos médicos

Easy Release Construction Premium Soft 1.5W/MK Silicone Thermal Pad For Medical Devices

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

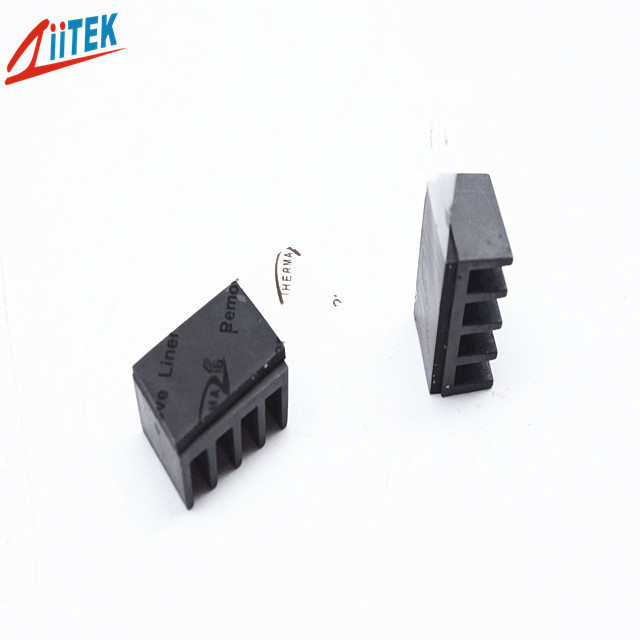

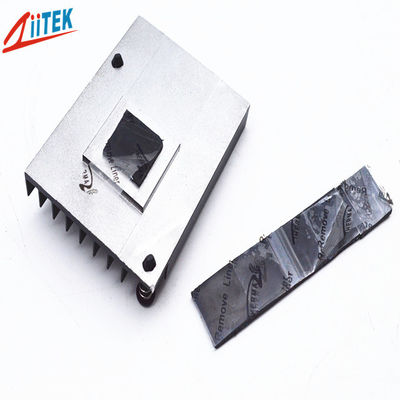

The TIF^®100-01U thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

Features

> Good thermal conductive: 1.5W/mK

> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications

> LED TV / LED Lit Lamps
> Automotive engine control units
> SAD-DC Power Adapters
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> Micro heat pipe thermal solutions
> Memory Modules

> Routers

> Telecommunication hardware

> Mainboard/mother board

> CPU
> Display card
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure

Typical Properties of TIF^®100-01U Series
Property	Value	Test method
Color	Black	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Thickness range	0.020"(0.5mm)~0.200"(5.0mm)	ASTM D374
Specific Gravity	2.2 g/cc	ASTM D792
Hardness	27 Shore 00	ASTM 2240
Operating Temp	-45 ~ 200℃	******
Dielectric Breakdown Voltage	≥5500 VAC	ASTM D149
Dielectric Constant @1MHz	3.5 MHz	ASTM D150
Volume Resistivity	≥1.0X10¹²Ohm-cm	ASTM D257
Fire rating	94 V0	UL E331100
Outgassing(TML)	0.35%	ASTM E595
Thermal conductivity	1.5W/m-K	ASTM D5470

Product Thicknesses: 0.020"(0.5mm)~0.200"(5.0mm)

Product Sizes: 8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection.The storage condition is low temperature anddry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
