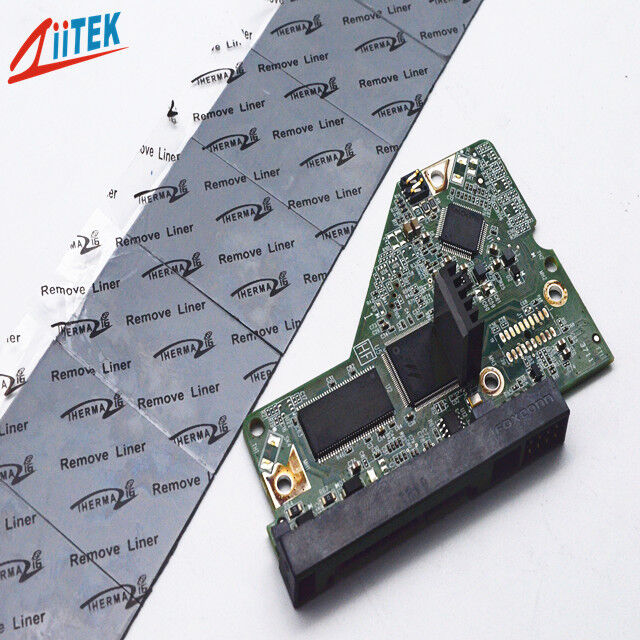

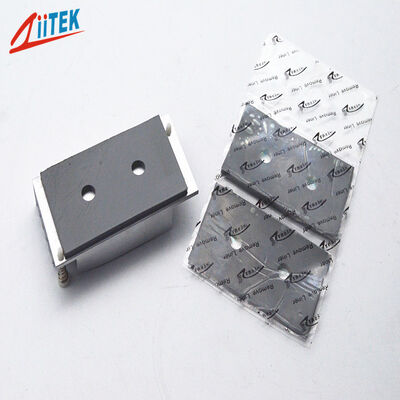

Name: Good Heat Dissipation Ultra Soft 7.5W Silicone Thermal Pad For AI Processors AI Servers
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF700PUS
Price: 4.10 USD
Availability: InStock

Inicio Productos cojín la termal del silicón

Good Heat Dissipation Ultra Soft 7.5W Silicone Thermal Pad For AI Processors AI Servers

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Ziitek
Certificación:	UL & RoHS
Número de modelo:	TIF700PUS

Pago y Envío Términos:

Cantidad de orden mínima:	1000 piezas
Precio:	0.1-10 USD/PCS
Detalles de empaquetado:	cajas de 242312 cm
Tiempo de entrega:	3-5 días laborables
Condiciones de pago:	T/T
Capacidad de la fuente:	1000000 PC/mes

Contacto

Descripción detallada del producto

Nombre de los productos:	Cojín termal del silicón ultra suave 7.5W de la buena disipación de calor para los servidores del AI	Construcción:	Elastómero de silicona lleno de cerámica
Aplicación:	Servidores de IA Procesadores de IA	Rango de espesor:	0,5-5,0 mmT
Calificación de fuego:	UL94 V-0	Constante dieléctrica @1MHz:	4.5
Color:	Gris	Conductividad térmica:	7.5W/m-K
Tensión de ruptura (V/mm)):	≥5500	Palabras clave:	cojín termal del silicón

Good Heat Dissipation Ultra Soft 7.5W Silicone Thermal Pad For AI Processors AI Servers

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

The TIF^®700PUS Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

Features

> Excellent thermal conductivity:7.5 W/mK

> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> High insulation performance

Applications

> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

> Unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator

Typical Properties of TIF^®700PUS Series
Property	Value		Test method
Color	Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.2		ASTM D792
Thickness Range(inch/mm)	0.020~0.030 (0.50~0.5)	0.040~0.200 (1.0~5.0)	ASTM D374
Hardness (Shore OO)	70	20	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞3.5 X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	7.5 W/m-K		ASTM D5470
	7.5 W/m-K		ISO22007

Product Specifications

Standard Thickness:0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.01" (0.25 mm)
Standard Size: 16"X 16" (406 mmX406 mm)

Component Codes:
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
