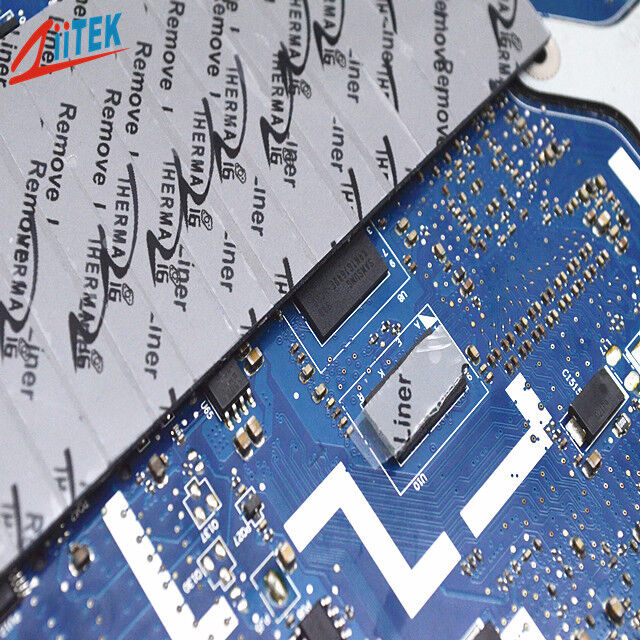

2.8W Electronic Components AI Server Thermal Pads 0.5mm High Quality Thermal Conductivity Insulated Pad

2.8W Electronic Components AI Server Thermal Pads 0.5mm High Quality Thermal Conductivity Insulated Pad

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: Ziitek
Certificación: UL & RoHS
Número de modelo: TIF500-28-11U
Pago y Envío Términos:
Cantidad de orden mínima: 1000 piezas
Precio: 0.1-10 USD/PCS
Detalles de empaquetado: cajas de 24*13*12 cm
Tiempo de entrega: 3-5 días laborables
Condiciones de pago: T/T
Capacidad de la fuente: 1000000 PC/mes
Contacto
Descripción detallada del producto
Nombre de productos: Almohadillas térmicas para servidor AI de componentes electrónicos de 2,8 W, almohadilla aislada de Palabras clave: Almohadilla térmica
Espesor: 0,25 mm ~ 5,0 mm (0,010 "~ 0,200") Densidad: 3.1 g/cm3
Tensión de ruptura dieléctrica: >5500 VCA Conductividad térmica: 2.8W/m-K
Color: Gris oscuro Temperatura de funcionamiento: -40 ~ 200 ℃
solicitud: Servidor AI de componentes electrónicos

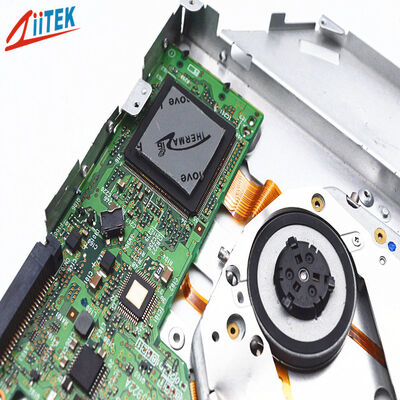

2.8W Electronic Components AI Server Thermal Pads 0.5mm High Quality Thermal Conductivity Insulated Pad



Company Profile



Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



Product introduction


TIF®500-28-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely_sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.



Features


> Good thermal conductive: 2.8W/mK
> Ultra-soft and highly conformable
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance



Applications


> Cooling components to the chassis of frame
> CD-Rom, DVD-Rom cooling
> SAD-DC Power Adapters
> CPU
> Memory Modules
> Mass storage devices
> Mass storage devices
> Unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator



Typical Properties of TIF®500-28-11U Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.1 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness 65 Shore 00 20 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL94 (E331100)
Thermal conductivity 2.8 W/m-K ASTM D5470
2.8 W/m-K ISO22007

Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mm×406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.



Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

2.8W Electronic Components AI Server Thermal Pads 0.5mm High Quality Thermal Conductivity Insulated Pad 0

Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.



FAQ



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
