| Lugar de origen: | Porcelana |
| Nombre de la marca: | Ziitek |
| Certificación: | UL and RoHs |
| Número de modelo: | TIF100-30-06S |
| Documento: | TIF100-30-06S_Data Sheet.pdf |
| Cantidad de orden mínima: | 1000 piezas |
|---|---|
| Precio: | 0.1-10 USD/PCS |
| Detalles de empaquetado: | cartón de 24*13*12cm |
| Tiempo de entrega: | 3-8 días laborables |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 100000 unidades/mes |
| Nombre de los productos: | Almohadilla térmica de silicona conductora térmica de 3,0 W/mK con buena suavidad y capacidad de lle | conductor termal: | 3.0W/mK |
|---|---|---|---|
| Dureza: | 65/45 Orilla 00 | muestra: | Muestra gratis |
| Color: | Blanco | Espesor: | 0,010"~0,200"/(0,25~5,0 mm) |
| Densidad: | 3.0 g/cm3 | Palabras clave: | Almohadilla térmica de silicona |
| Construcción: | Elastómero de silicona relleno de cerámica | Solicitud: | Procesadores de IA y refrigeración electrónica |
Products description

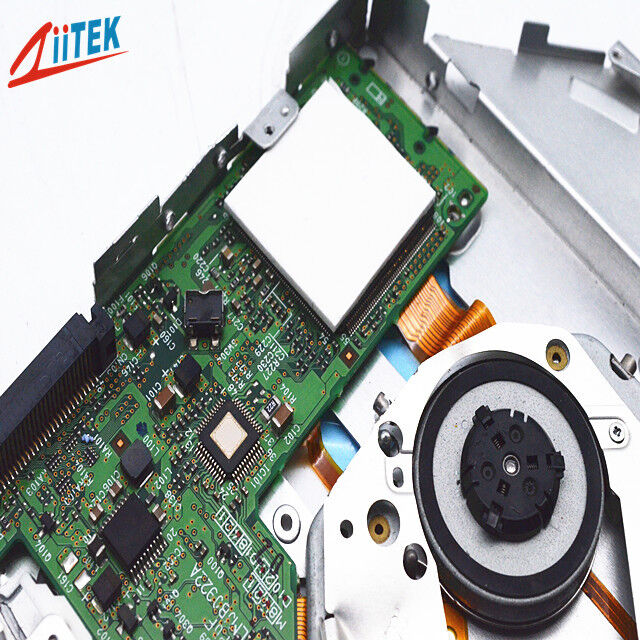

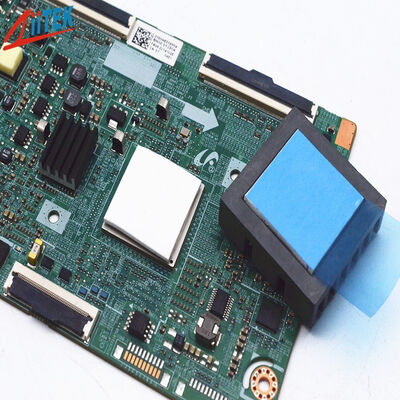

The TIF®100-30-06S Series is awell-balanced,general-purpose thermal pad.It offers high thermal conductivity and moderate hardness. This balanced design provides both excellent suface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.
| Typical Properties of TIF®100-30-06S Series | |||
| Property | Value | Test method | |
| Color | White | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.0) | ||
| Hardness (Shroe 00) | 65 | 45 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant@ 1MHz | 5.2 | ASTM D150 | |
| Volume Resistivity | >1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 3.0 W/m-K | ASTM D5470 | |
| 3.0 W/m-K | ISO22007 | ||
Product Specifications
![]()
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
![]()
