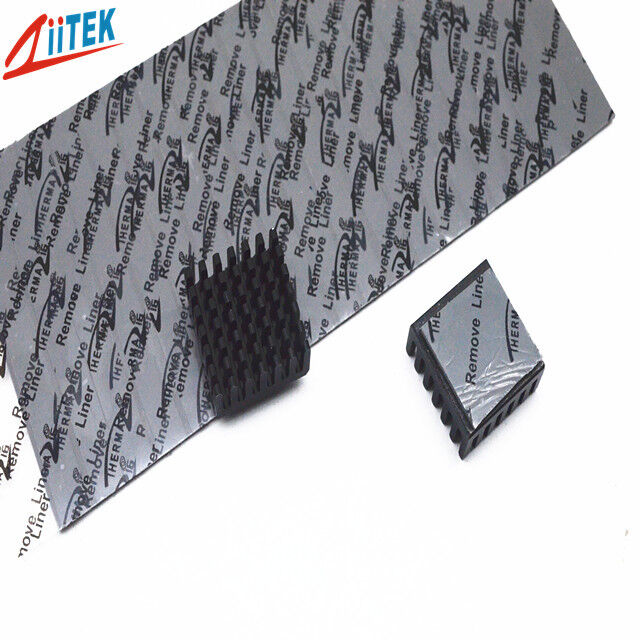

Name: Ultra-Soft 10W/mK Thermal Pad with Ceramic Filled Silicone for High-End Chip Cooling
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100 10020-11
Price: 4.10 USD
Availability: InStock

Inicio Productos cojín la termal del silicón

Ultra-Soft 10W/mK Thermal Pad with Ceramic Filled Silicone for High-End Chip Cooling

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Ziitek
Certificación:	UL and RoHs
Número de modelo:	TIF100 10020-11
Documento:	TIF100 10020-11_Data Sheet.pdf

Pago y Envío Términos:

Cantidad de orden mínima:	1000 piezas
Precio:	0.1-10 USD/PCS
Detalles de empaquetado:	cartón de 241312cm
Tiempo de entrega:	3-8 días laborables
Condiciones de pago:	T/T
Capacidad de la fuente:	100000 unidades/mes

Contacto

Descripción detallada del producto

Nombre de los productos:	La almohadilla térmica Ultra Performance 10W/mK llena eficazmente los espacios para chips de alta ga	conductor termal:	10.0W/mK
Dureza:	20 orilla 00	muestra:	Muestra gratis
Color:	Gris oscuro	Espesor:	0,012"~0,200"/(0,30~5,0 mm)
Densidad:	3,3 g/cm³	Palabras clave:	Almohadilla térmica de silicona
Construcción:	Elastómero de silicona relleno de cerámica	Solicitud:	Chip de alta gama

Ultra Performance 10W/mK Thermal Pad Effectively Fill Gaps Pad For High-end Chip

Product Description

The TIF®100 10020-11 Series is an ultra-soft thermal interface material specifically designed to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-like softness, achieving a low-stress perfect fit. It effectively addresses issues in high-precision assemblies, including large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

Features

Excellent thermal conductivity 10.0W/mK
Super soft and highly compliant
Self-adhesive without the need for additional surface adhesives
High insulation performance

Applications

AI Servers
Semiconductor Packaging
Low-Altitude Aircraft
Optical Communication Products
5G Base Stations

Typical Properties of TIF®100 10020-11 Series

Property	Value	Test Method
Color	Dark White	Visual
Construction & Composition	Ceramic filled silicone elastomer	******
Density (g/cm³)	3.3	ASTM D792
Thickness Range (inch/mm)	0.012~0.020 \| 0.030~0.200 0.30~0.50 \| 0.75~5.0	ASTM D374
Hardness (Shroe 00)	20 \| 20	ASTM 2240
Recommended Operating Temperature	-40 to 200℃	******
Breakdown Voltage (V/mm)	≥5500	ASTM D149
Dielectric Constant @ 1MHz	6.4	ASTM D150
Volume Resistivity	＞1.0×10¹² Ohm-meter	ASTM D257
Flame Rating	V-0	UL 94 (E331100)
Thermal Conductivity	10.0W/m-K 10.0 W/m-K	ASTM D5470 ISO22007

Product Specifications

Standard Thickness: 0.012" (0.30 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"x16" (406 mm x 406 mm)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Packaging Details & Lead Time

Packaging of Thermal Pad:

With PET film or foam for protection
Use paper card to separate each layer
Export carton inside and outside
Meet with customers' requirement - customized

Lead Time:
Quantity (Pieces): 5000
Est. Time (days): To be negotiated
